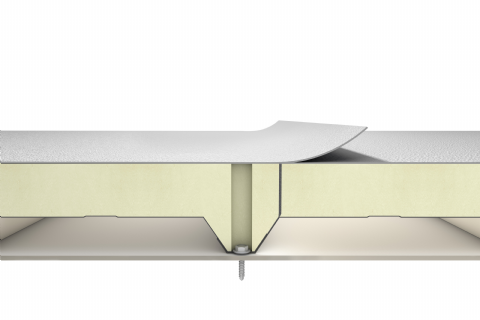

5 Ribs Membrane Roof Panel-Single Sheet
-
5 ribs profiled inner sheet
-
Inner sheet is prepainted galvanized steel, outer sheet is PVC Membrane
-
Production in various color options
-
Application of flat roofs and roofs with a slope lower than 5%
-
Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated roof panels,B-s1; d0 for PIR insulated roof panels
-
Production flexibility at any ordered length between 2 m - 12 m
-
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm
-
PVC Membrane thickness options 1,20-1,50-1,80-2,00 mm
-
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness
-
Mineral Wool insulation alternative besides PUR and PIR insulation
-
Production at the factories in Izmir, Mersin and Sakarya
Application Areas
Certificates

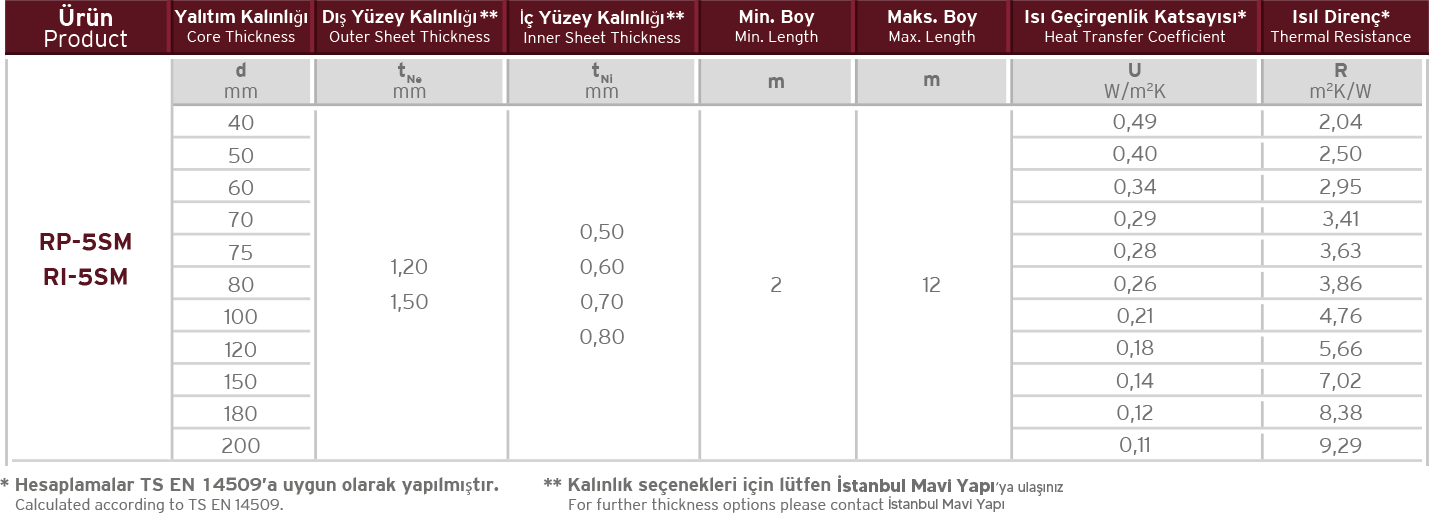

Physical Data

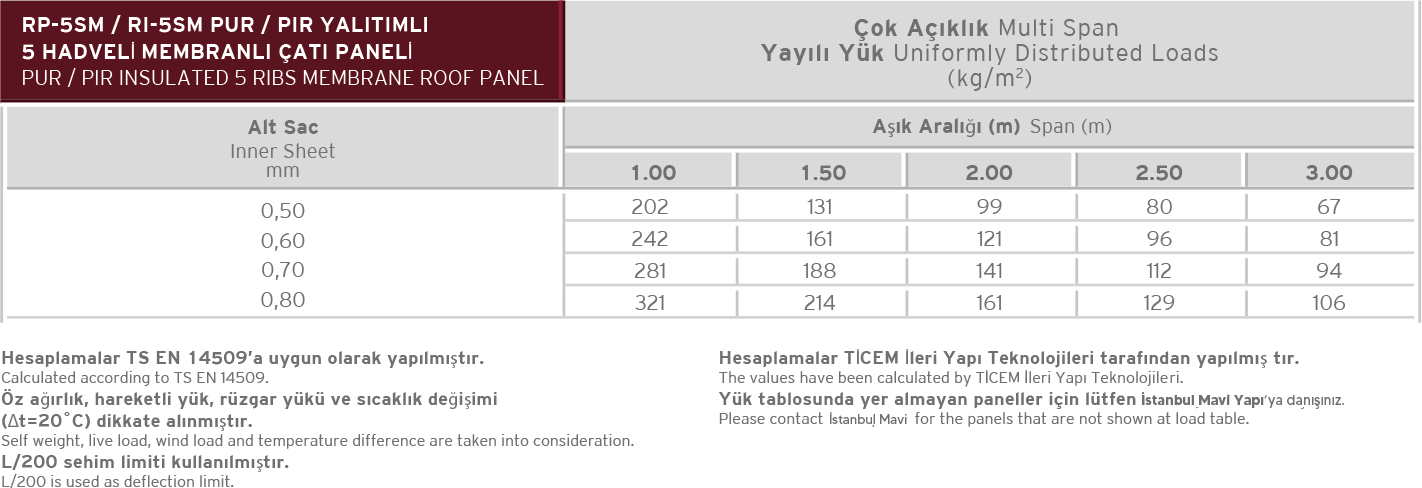

Load Table
